JMS M-Series mobile dust collectors offer flexible intake options which means they can be used for general ventilation and dust extraction at the source. Single air intakes are best suited for large dust loads whilst dual and multiple air intakes can be used to extract dust from multiple sources simultaneously. Flexible couplings allow the dust collector inlet to connect effectively to ducting on uneven surfaces.
Another key feature of the mobile dust collectors rang is the high efficiency filter cartridges which provide filtration of both dust and diesel particulates. Baffle plates distribute air throughout the dust collector ensuring an even wear of filters. Filter access doors offer easy access to the filters, enabling efficient filter maintenance and maximising machine uptimes.
Independent, NATA certified Air Flow Performance and Filtration Testing has been conducted both above and below ground as part of rigorous Performance Verification and Certification processes and shows a collection efficiency of 99.99% at 0.067 micron.

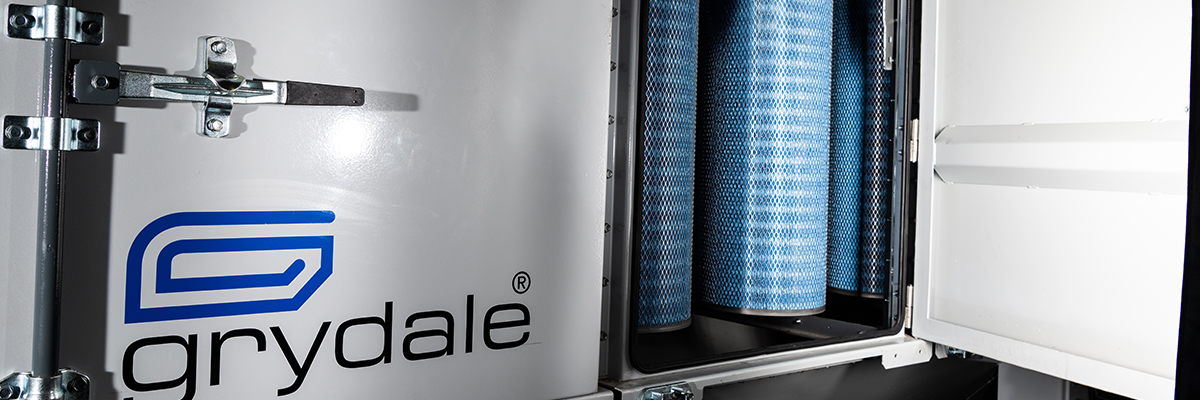

The filters can be easily accessed through the filter access doors to allow efficient filter maintenance to maximise machine uptimes. Changing the filters at the optimum time ensures the dust collector does not draw more kW than required to maintain air flows.
Reverse Pulse Cleaning System
JMS M-Series dust collectors have either a plant air connection or an on-board air compressor and receiver tank which feed the pneumatic system to provide reverse pulse filter cleaning. The pneumatic system’s primary function is to clean out the filters during operation to prevent dust build up on the filters.
Pressure and frequency of pulse cleaning is adjustable and helps reduce the number of filter changes required.
Patented Drop-Out Box
Our patented drop out box takes heavy dust particles and shotcrete fibres out of the air stream and discharges them through the augers and rotary valves before they hit the filters. This exclusive patented design extends filter life and allows the units to handle extreme dust loading.
